UndoTree for Sublime Text

Package Control Sublime Text

A Vim-style UndoTree plugin for Sublime Text 4 (Python 3.8+), visualizing undo history as a branching ASCII tree with live diff previews.

Features

  • Branching undo history — every save creates a new node; multiple branches supported
  • ASCII tree visualization — shows the hierarchy of undo states using indentation and -
  • Current node marker — the active undo state is marked with *
  • Sequential counters — each node is numbered for easier reference (1 -> +2 -0)
  • Live diff preview — highlights changes when navigating the tree
  • Restore any state — select a node to restore its content in the editor
  • Automatic initial snapshot — captures file content on open
  • Lightweight & Python-only — no external dependencies

Installation

  1. Place the plugin folder into your Sublime Text Packages directory:
  • Linux: ~/.config/sublime-text/Packages/
  • Windows: %APPDATA%\Sublime Text\Packages\
  • macOS: ~/Library/Application Support/Sublime Text/Packages/
  1. Restart Sublime Text.

Usage

Open UndoTree

  • Open the command palette (Ctrl+Shift+P / Cmd+Shift+P) → Show UndoTree

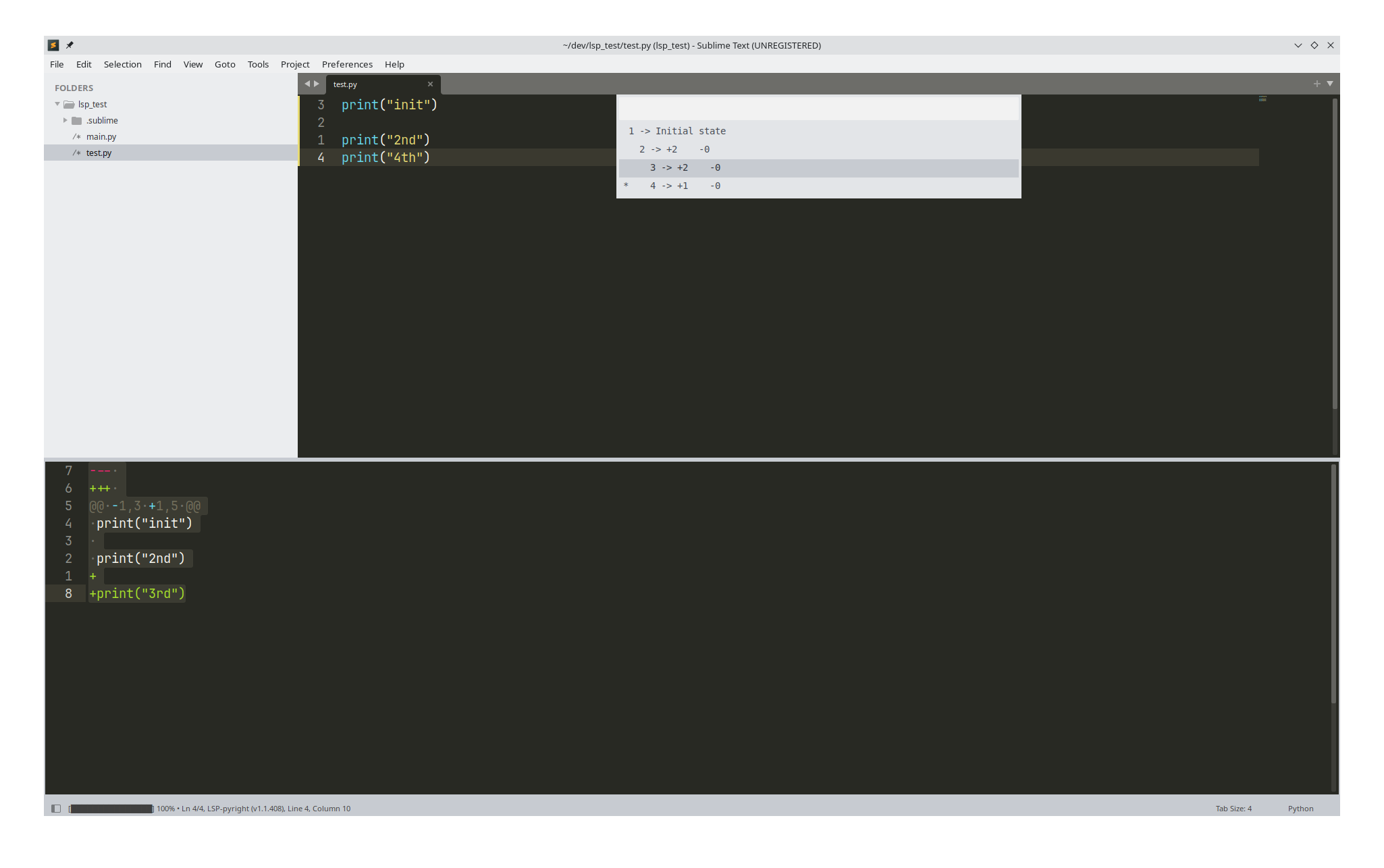

  • The tree will appear in a Quick Panel, for example:
*1 -> Initial state
2 -> +2 -0
3 -> +1 -0
4 -> +3 -1
5 -> +1 -2
  • * marks the current node
  • -> separates the counter from the diff summary

Restore a Node

  • Move the selection in the Quick Panel
  • Press Enter → restores the editor content to that node
  • Hovering over nodes shows a live diff preview in a separate panel

UndoTree Behavior

  • Every file save creates a new node
  • Branches are automatically tracked if you modify the file from an older state
  • Initial file load automatically captures the starting state

Example Tree

*1 -> Initial state
2 -> +2 -0
3 -> +1 -0
4 -> +3 -1
5 -> +1 -2
  • Shows indentation for branches
  • Current node is marked with *
  • Numbers help track node order

Commands

Command Description
show_undo_tree Opens the UndoTree Quick Panel
undo_tree_restore Restore buffer content to a specific node
undotree_write_preview Internal: writes live diff preview
undotree_write_panel Internal: updates ASCII tree panel

Requirements

  • Sublime Text 4 / 3.8+
  • Python 3.8+ (built-in with Sublime Text 4)
  • No additional dependencies

Notes

  • ASCII tree uses spaces and - only for branch visualization, so it works in any font
  • Hover preview works with the diff panel
  • Branches can be navigated visually, but the Quick Panel does not allow full Vim-style j/k navigation yet
